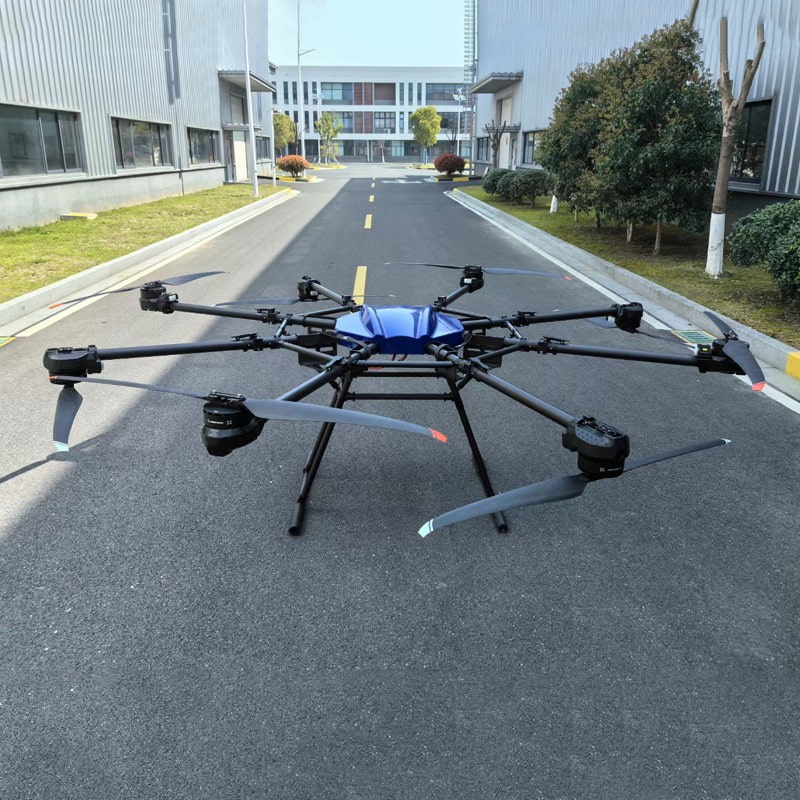

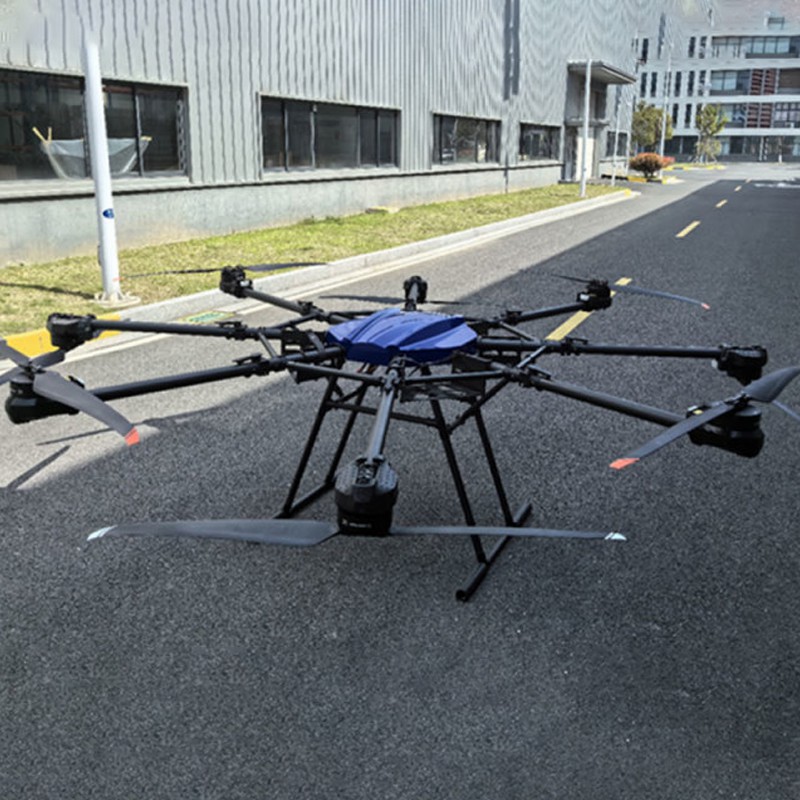

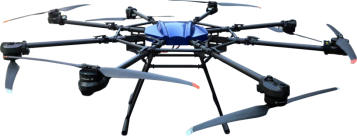

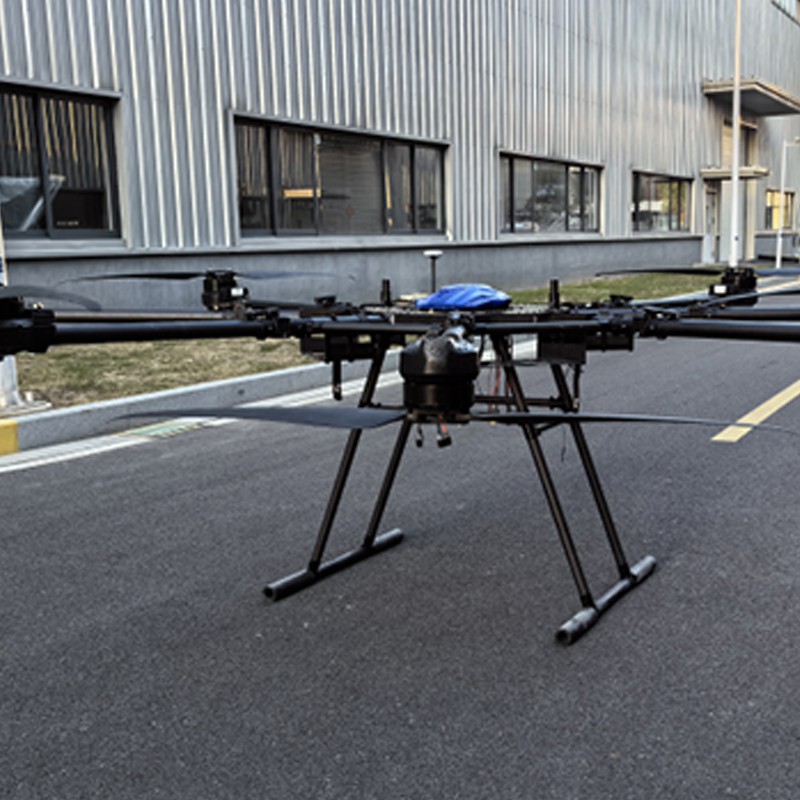

This drone is designed specifically for heavy-duty transportation scenarios, with a body made of high-strength lightweight materials and modular structure that supports rapid folding and unfolding, balancing portability and operational efficiency. Equipped with an intelligent flight control system, it has one click takeoff and landing, autonomous cruise control, real-time route editing, and multi-mode emergency response functions, making it easy to meet the precise control needs in complex environments.
Equipped with an efficient power system and multiple redundant safety designs, it meets the needs of short to medium distance material transportation, equipment lifting, and emergency tasks. The open task platform is adapted to professional scenarios such as surveying, inspection, and logistics, with real-time monitoring of flight status and high-precision hovering capabilities, further ensuring task safety and reliability.
Industrial grade heavy-duty transportation is stable and reliable
Module structure, fast folding, portable deployment
Intelligent flight control multi-mode precise task execution
Resistant to extreme environments and adaptable to multiple scenarios
Q-100E parameter |
|
Unfolded Size |
3200*3200*1200mm |
Folded Size |
1800*1800*1200mm |
wheelbase |
3200mm |
Blade size |
56inch |
maximum load |
≤100kg |
Maximum flight time |
≤28min |
Maximum level flight speed |
15m/s |
cruising speed |
10m/s |
Maximum ascent speed |
5m/s |
Maximum descent speed |
4m/s |
Maximum pitch angle |
25° |
Maximum rotational angular velocity |
Pitch axis: 120/s; Heading axis: 120/s |
Hover accuracy |
Vertical: ± 0.5m; Level: ± 1.0m |
Wind resistance |
Safe takeoff and landing at ≤ 8m/s |
Flight control system |
|
function |
One click takeoff, one click landing, autonomous cruise, loss of control return |
task |
Landing nearby, hovering in place, climbing and returning |
monitor |
Can preset way points and route tasks, and can edit routes and waypoint tasks in real-time |
INPUT VOLTAGE |
3S~12S(12V~58V) |
Ambient Temperature |
-40℃~+70℃ |
S. BUS output |
support |
Maximum number of way points |
2000+ |
The above parameters are for reference only. Detailed product parameters are subject to actual delivery. |
