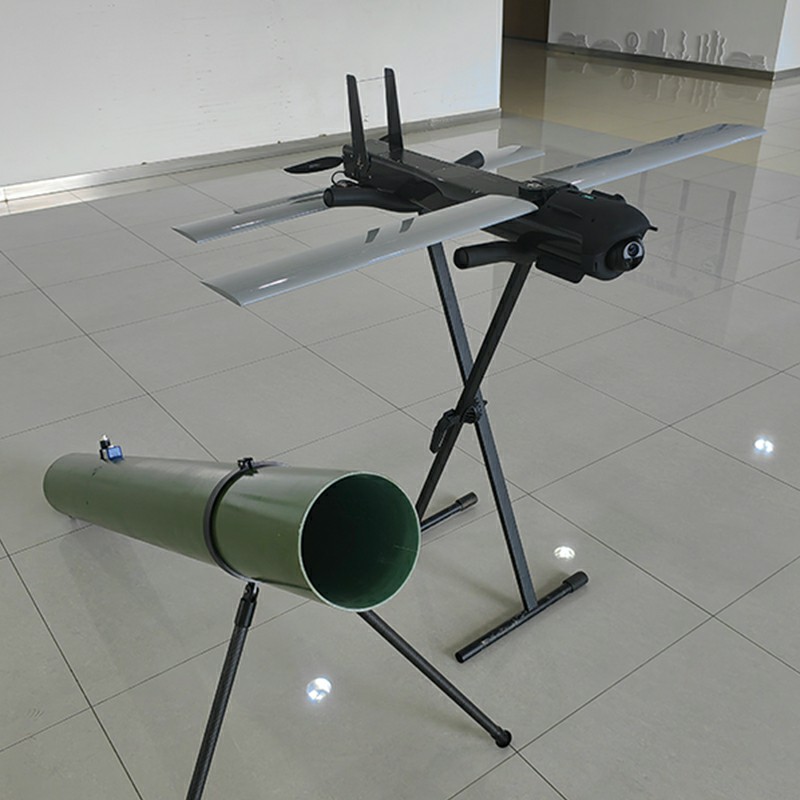

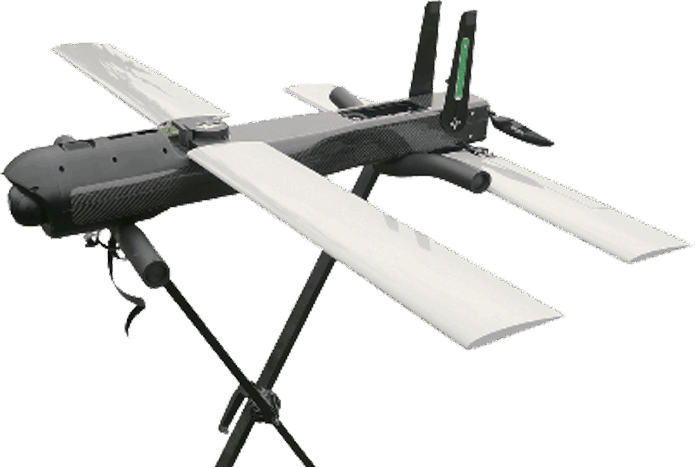

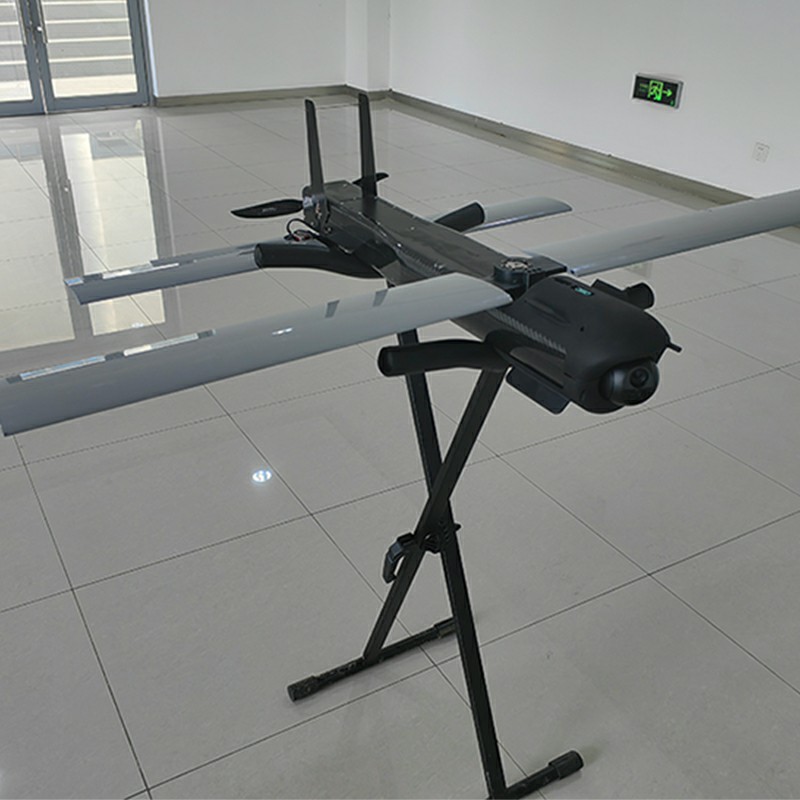

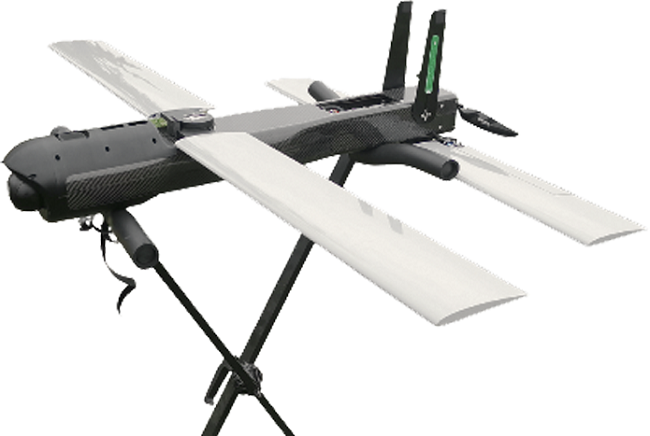

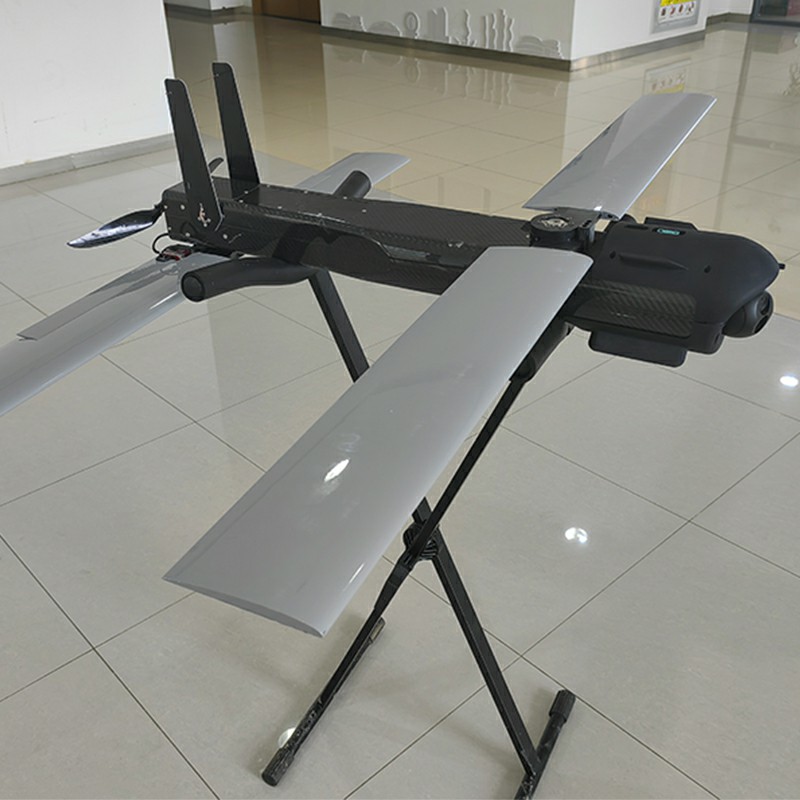

The integrated drone data link system is powerful and highly integrated, capable of simultaneously transmitting high-definition video, data, and SBUS signals. The transmission distance can be selected from 22km or 55km, and the ground end has a 1/4 screw mouth, which can be installed on a universal tripod. Users can connect the standard high-strength flexible cable to the ground station system to obtain the video and data of the drone.
Functional indicators
Drones meet the following functions:
A) Manual control function
In manual control mode, the drone responds to remote commands from ground operators for flight and can be used for emergency purposes in case of malfunctions.
B) Umbrella descent recycling
The drone has a manual parachute descent and recovery function.
C) Automatic route function
By presetting the flight route through the ground station, the drone will fly according to the predetermined route.
Product Parameters
A) Maximum takeoff weight: ≥6kg
B) Maximum flight speed: 130~150km/h
C) Maximum range ≥ 60km
D) Usage height: 100m~3000m
E) Battery life: ≥30min
F) Communication distance 20-55km (optional)
G) Task load ≥ 1.5kg
H) Body length ≥ 790mm
I) Wingspan ≥ 1200mm
Dimensional indicators
After folding, the overall size of the machine meets the following requirements:
A) Maximum diameter: ≤160mm
B) Maximum length: ≤910mm
environmental adaptation
A) Operating temperature: -20 ℃ to+70 ℃;
B) Storage temperature: -30 ℃ to+70 ℃;
C) Relative humidity: not exceeding 70%;
Product main accessories technical parameters indicators

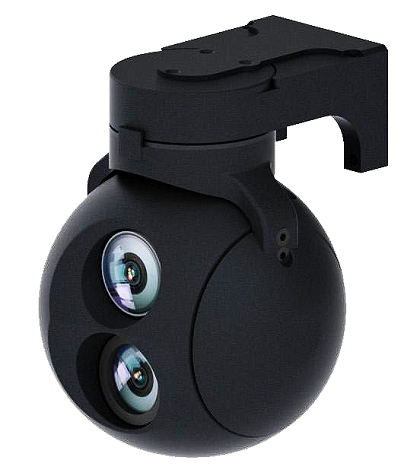

electronic optical pod
a) Extremely compact structure, weighing less than 240 grams
b) Anti launch impact, suitable for launching and launching unmanned aerial vehicles
c) Equipped with servo image stabilization function
d) Built in tracking function
e) Wide voltage 12-28V input, dynamic power consumption control
f) All electronic devices are integrated into metal casing packaging
g) Compliant with EMC design specifications
system description |
|
System type |
Gyroscopic stability |
weight |
≤ 280g |
System characteristics |
|
platform type |
Two-axis |
course |
-110 ° to+110 ° |
pitch |
-100 ° to+40 ° |
Maximum angular velocity |
≥ 100 °/s |
Stable accuracy |
0.1mrad (1°/2HZ) |
Angular position accuracy |
≤ 0.3 |
Visible light imaging (large field of view) |
|
Resolution and frame rate |
1920 × 1080@60fps |
Field of view angle (focal length) |
42.2 ° × 24.5 ° (7.2mm) |
Visible light imaging (small field of view) |
|
Resolution and frame rate |
1920 × 1080@60fps |
Field of view angle (focal length) |
12.7 ° × 7.1 ° (25mm) |
Tracking module |
|
Frame rate |
60Hz |
tracking speed |
± 48 pixels/frame |
environmental condition |
|
operation temperature |
-40 ℃~+60 ℃ |
storage temperature |
-50 ℃~+70 ℃ |
Maximum allowable overload |
≥ 400g |
Image data transmission data link
The integrated drone data link system is powerful and highly integrated, capable of simultaneously transmitting high-definition video, data, and SBUS signals. The transmission distance can be selected from 22km or 55km, and the ground end has a 1/4 screw mouth, which can be installed on a universal tripod. Users can connect the standard high-strength flexible cable to the ground station system to obtain the video and data of the drone.
size |
Air 10cm×6.3cm×2.2cm/150g;Ground side 25.6cm×25.6cm×9.4cm/1.9kg |
Working frequency range |
800MHz/1.4GHz/2.4GHz |
bandwidth |
5MHz/10MHz/20MHz |
Modulation Type |
OFDM |
output power |
MK22:30dBm±1dB;MK55:33dBm±1dB |
sensitivity |
≤-92dBm |
Communication distance |
MK22:22km;MK55:55km |
air rate |
Max 30Mbps |
Power supply range |
DC9-28V(battery3S~6S) |
power consumption |
≤8.5W |
Serial port |
1个RS232+1个TTL(Air);2个,RS232(Ground) |
SBUS |
SBUS_OUT*2(Air);SBUS_IN*2(Ground) |
Network port power supply |
1个,4pin interface,4pin line (Air) |
1, RJ45 standard crystal head (ground end) |
|
Antenna type |
1, 4pin (Sky end Air); 1, XT60/V-Cut battery (ground end) V-Cut battery |
operation temperature storage temperature |
Sky end: 2.5dBi rubber rod antenna |
Ground end: 12dBi flat antenna+5dBi fiberglass antenna |
|
humidity |
-40℃-+70℃ |
Network port |
-40℃~+85℃ |
power supply |
5~95%, no condensation |
