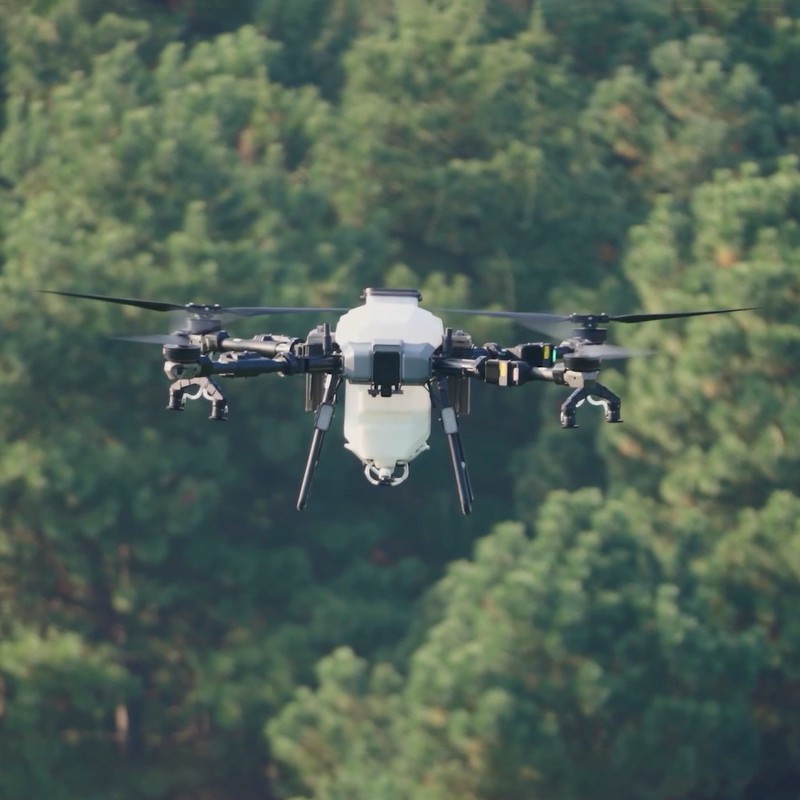

The whole drone is equipped with anti drop and protection, using a new generation of self-developed flight control system, with a frame made of aviation aluminum, arm connection lock buckle, stable structure, classic quadcopter, environmentally friendly folding making the special session easy, IP67 protection standard, no fear of pesticide and fertilizer corrosion, built-in UPS, no need to wait after battery replacement, ready to set sail immediately, split design, reducing interference, portable maintenance, multiple protection design, superior safety redundancy, electrically adjustable for quick disassembly, doubled power redundancy, good heat dissipation performance, and more stable flight operations.
Weight :
59.6kgEndurance :
15minsize :
3380*3550*950mm1、 Product Overview

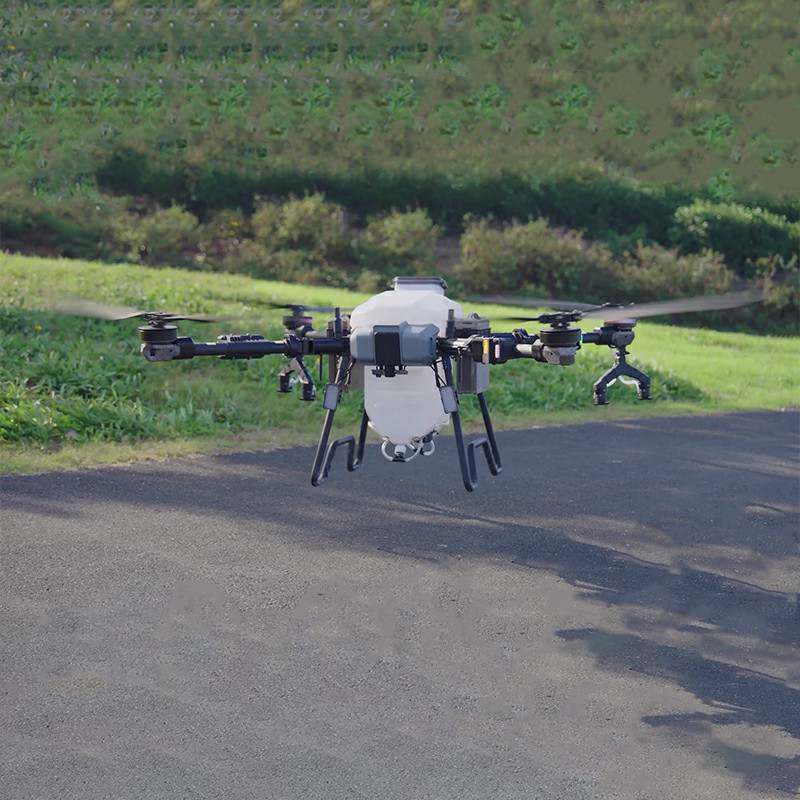

A versatile agricultural unmanned aerial vehicle designed for various agricultural scenarios such as fields and fruit trees. It has strong load-bearing capacity, excellent protective performance, and efficient operation efficiency, which can meet the agricultural plant protection needs of different users and improve agricultural production efficiency and quality.
2、 Function and Performance
2.1 Spray function

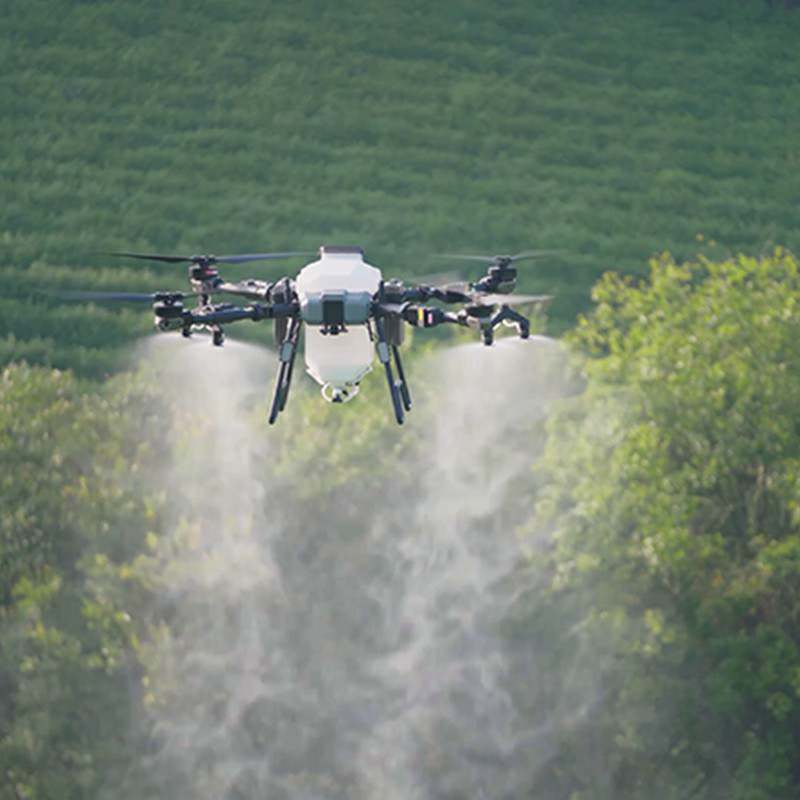

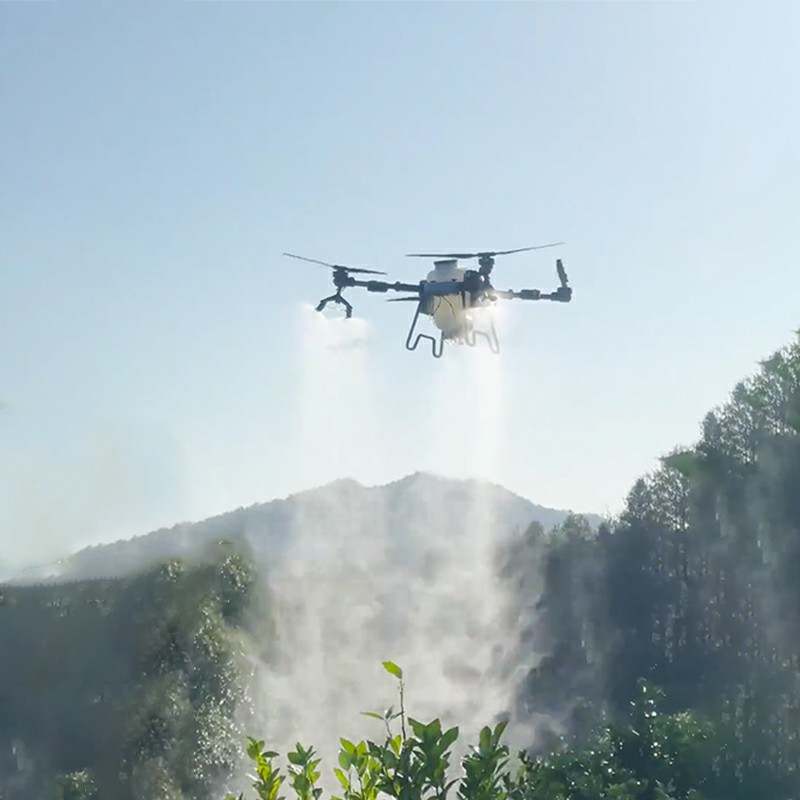

Rear mounted four centrifugal nozzle: an efficient spraying system that supports single-sided spraying, precise application, and reduces waste of medication and environmental pollution.
High flow metering pump: The maximum flow rate can reach 40L/min, ensuring the efficiency and accuracy of pesticide application, and stable and reliable flow rate.
Adjustable atomization particle size: adjustable from 30 μ m to 500 μ m, suitable for different crops and pest control needs, with droplets evenly covering the surface of crops.
2.2 Broadcasting function
Precise sowing plan: The dual rollers work together to ensure even sowing of materials and improve the effectiveness of sowing and fertilization.
Large capacity material box: supports the sowing of various materials, such as rapeseed, bait, compound fertilizers, rice seeds, etc., to meet diverse agricultural needs.
Efficient cutting speed: The maximum cutting speed is 220kg/min, which improves work efficiency and shortens working time.
2.3 Radar and Surveying
Newly upgraded 4D radar: with a detection range of up to 150 meters and stable braking at a flight speed of 13.8m/s, ensuring flight safety.
High definition surveying system: equipped with high-definition surveying lens, real-time mapping, supports fully autonomous flight to shoot high-precision maps, and improves the accuracy of operation planning and execution.
3、 Applicable scenarios

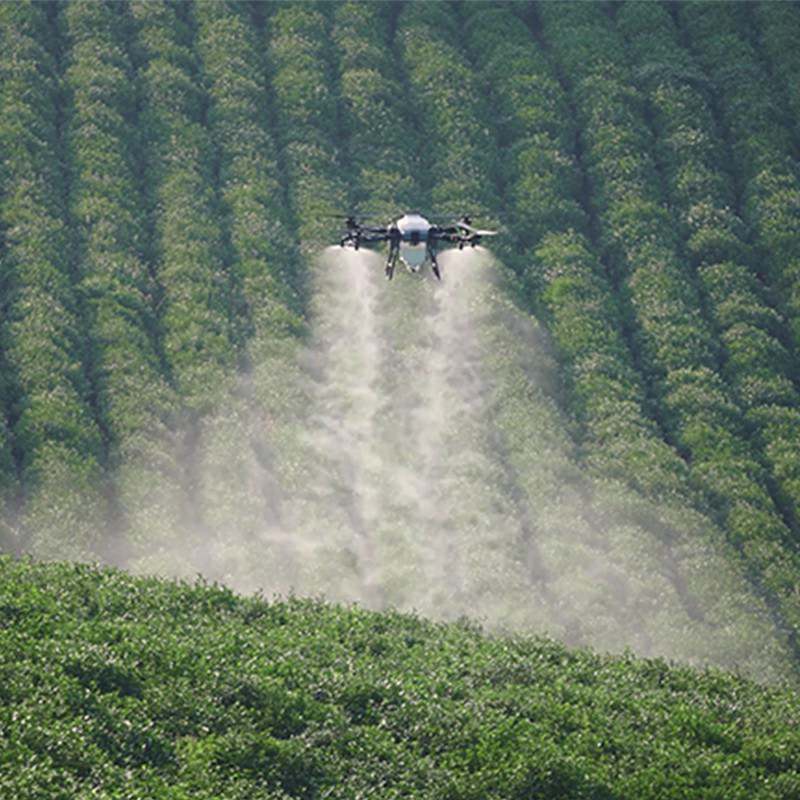

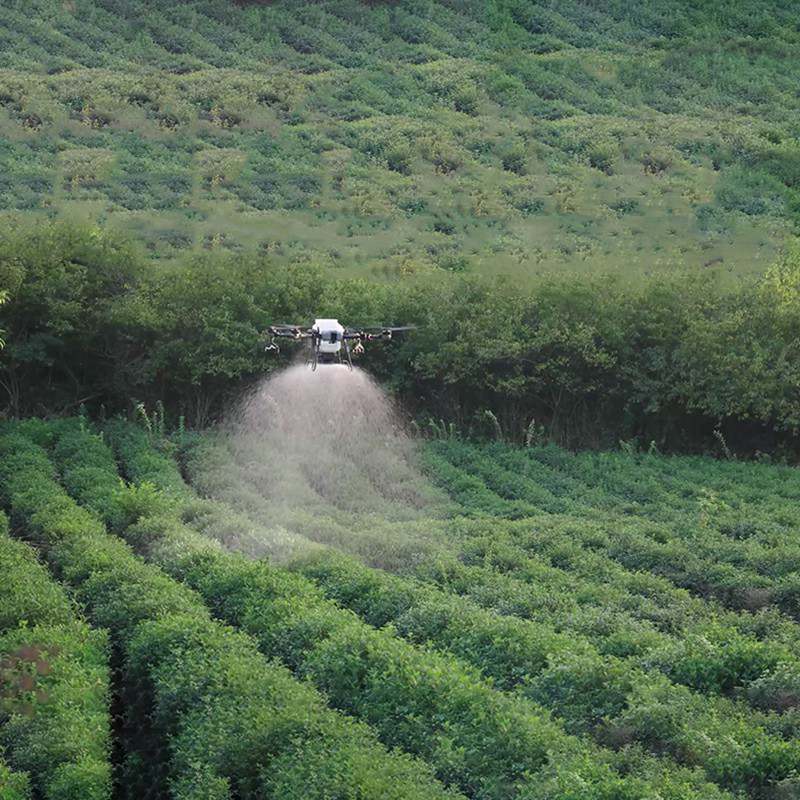

Suitable for crop protection operations in various terrains and crops such as fields, fruit trees, hills, etc., it can provide efficient and precise solutions for pest control of large-scale grain crops, as well as precise fertilization and spraying of orchards, and help promote the development of modern agriculture.
4、 Product Design Highlights:
Classic quad copter design, wrapped and folded for easy transition
Safe lock buckle design, stable structure
Electric adjustment can be quickly disassembled and reassembled, doubling power redundancy
The rack is made of aviation aluminum and has IP67 protection level
The whole machine has excellent drop resistance and protection to support lifting mode, with a load capacity of up to 60kg and a working radius of 2km
Efficient spraying scheme with rear mounted four centrifugal nozzles
Precise broadcasting scheme with dual roller collaborative work
Newly upgraded 4D radar empowers safety
Airborne high-definition surveying and mapping, ready to shoot and use
5、 Technical parameters:
5.1 Rack
1. Symmetrical motor wheelbase: 2200mm
2. Single arm length: 850mm
5.2 Flight Parameters
1. Empty weight (including battery): 59.6kg (in spray state) 61.5kg (in spray state)
2. Rated takeoff weight: 119.6kg (in spray state) 131.5kg (in spray state)*
3. Hover accuracy:
-Horizontal ± 1.0m, vertical ± 0.5m (good GNSS signal)
-Horizontal ± 10 cm, vertical ± 10 cm (RTK enabled)
-Vertical ± 0.1m (radar enabled)
4. Hover time *:
-≥ 6min (119.6kg takeoff weight&20Ah * 2 batteries)
-≥ 15 minutes (59.6kg takeoff weight&20Ah * 2 batteries)
5. The hovering time is measured near sea level, with a wind speed of less than 3m/s and an ambient temperature of 25 ℃.
6. Maximum flight speed: 13.8m/s
7. Maximum takeoff altitude: 2000m
8. Recommended working environment temperature: 0~40 ℃
5.3 Spray system
1. Rated capacity of homework box: 60L
2. Water pump:
2.1 Water pump type: metering peristaltic pump
2.2 Number of channels: 2
2.3 Maximum flow rate: 20L/min (single water pump)
3. Centrifugal nozzle:
3.1 Protection level: IP67
3.2 Maximum atomization capacity: 10L/min (single nozzle)
3.3 Spray range: 6-10m
3.4 Atomized particle size: 30μm~500μ m
