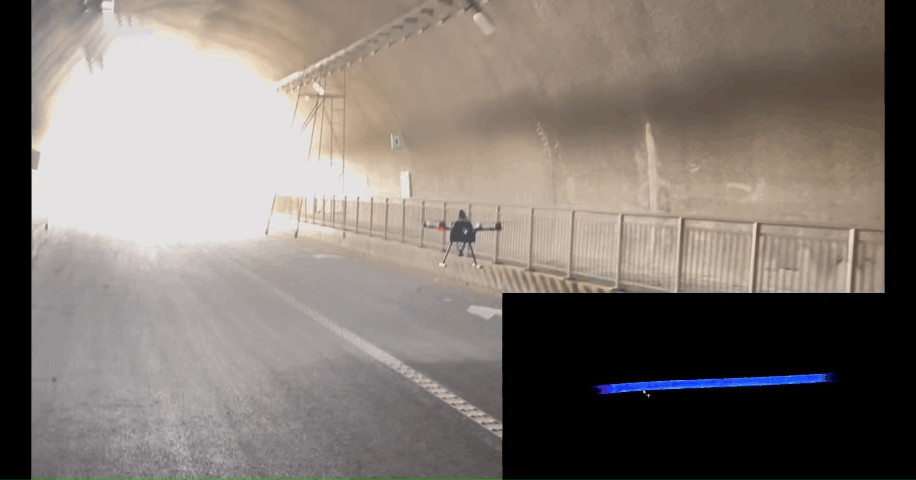

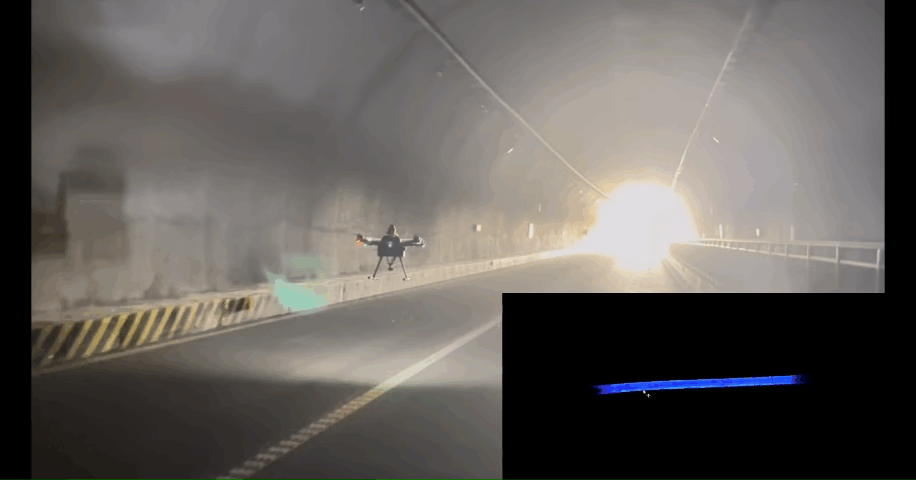

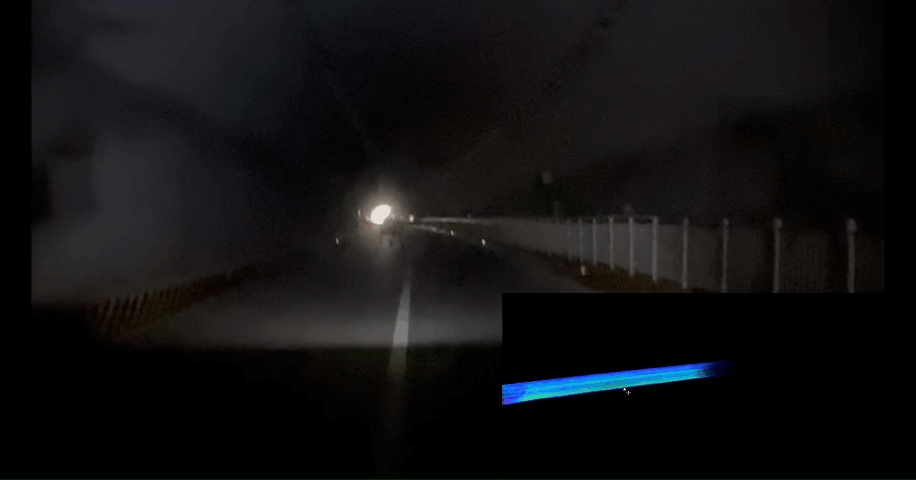

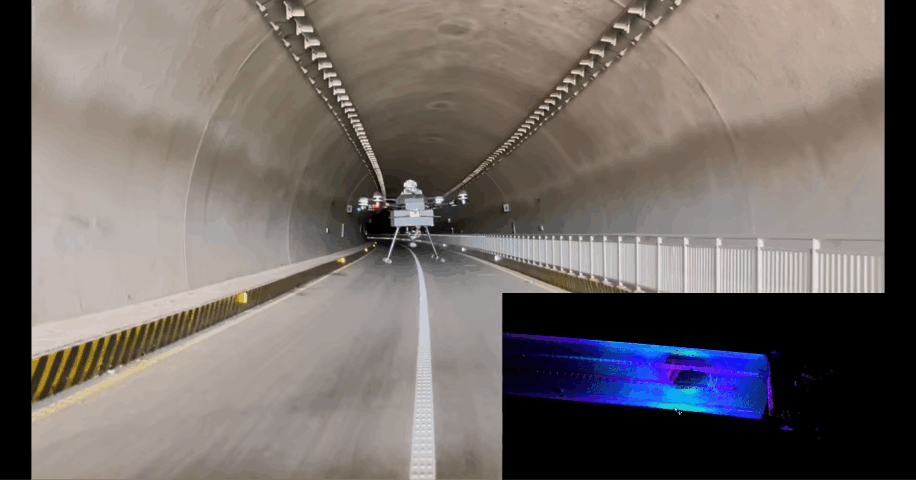

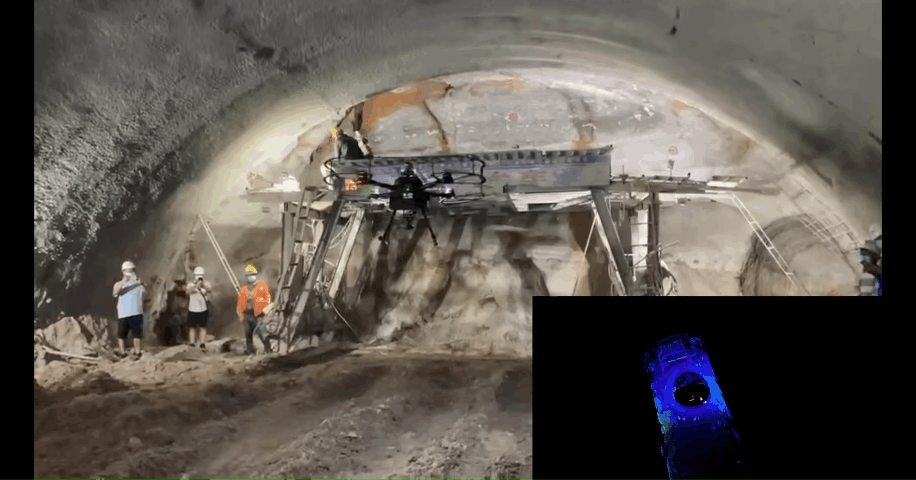

This UAV only needs to be observed and remotely controlled by a pilot on the ground, avoiding the risk of manual inspection and improving the safety of the operation. Meanwhile, based on Li DAR technology, it can smoothly fly autonomously in indoor and underground environments without GNSS data information, and can comprehensively scan the top, bottom and surface of indoor and tunnel areas without dead corners. Build HD model image data. In addition, the whole UAV is equipped with a cage anti-collision structure, which effectively guarantees the safety of the UAV during flight, and can be used in a variety of environments such as highway tunnels, tunnel passages, and indoor environments.
Product characteristics
Relying on the quad rotor platform, it has undergone various regional tests such as high temperature, low temperature and salt spray
Intelligent scenarios are widely used, and smooth flight under weak GNSS environment
The whole machine collision avoidance, multi-sensor, high-definition shooting, real-time return image definition is not less than 1080p
Ground remote observation, operation safety and save inspection costs
Product parameter
TSU-1 indoor drone |
|
Size |
≤990mm(including four-way collision protection cover) |
Material |
Carbon fiber |
Empty weight |
≥4.9kg(including battery and protective cover) |
Endurance time |
≥20min |
Maximum flying speed |
3m/s |
Maximum ascent speed |
1m/s |
Vision and distance sensors |
≥1set |
Fill lighting |
support |
Visible light pixel |
≥8 million,Support 4K video recording |
Modular load change function |
support |
Control radius |
≥300m |
Wind resistance class |
5m/s |
Operating temperature |
0℃~50℃ |
Integrated dual remote control ground station parameters |
|
Display screen |
7 |
Size |
308*148*72mm(no antenna) |
Weight |
1.44kg |
Battery capacity |
10200mAh |
Endurance time |
≤10h |
Charging time |
3.5h |
Port |
HDMI、USB -A、Type-C、LAN、SIM |
Operating temperature |
-10℃~50℃ |
Waterproof class |
IP45 |
Parameters of 3D Li DAR imaging module |
|
Size |
65*65*60mm |
Material |
Aviation aluminum alloy |
Weight |
0.256kg |
Laser wavelength |
905nm |
range |
40m@10% reflectivity |
FOV |
Horizontal 360°,vertical -7°~52° |
Frame rate |
10 Hz |
Operating temperature |
-20℃ to 55℃ |
Supply voltage range |
9~27 V DC |
Number of shots |
3 |
Imaging FOV |
270° |
Three-piece camera module parameters |
|
Total pixel |
78000000 |
Weight |
≤0.3kg |
Minimum exposure interval |
0.7s |
sensor |
APS -C Sony CMOS sensor |
The above parameters are for reference only, and the detailed product parameters are subject to actual delivery. |
