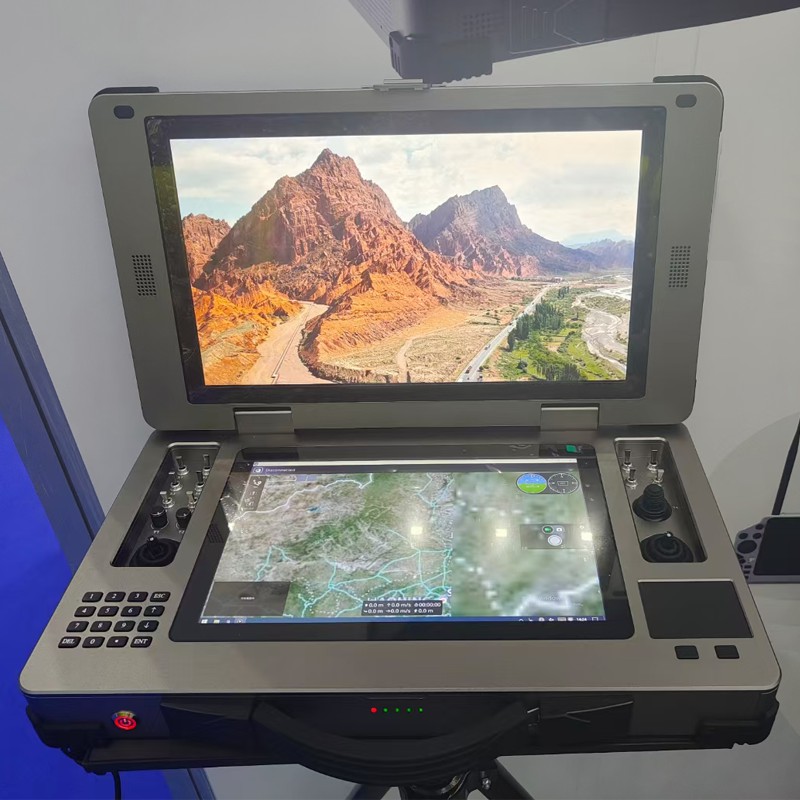

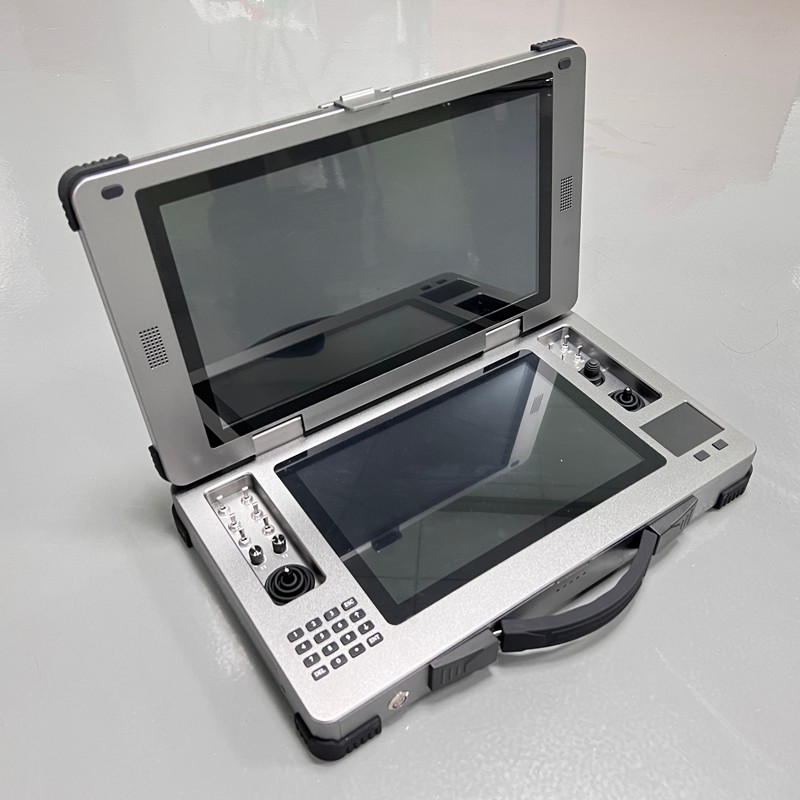

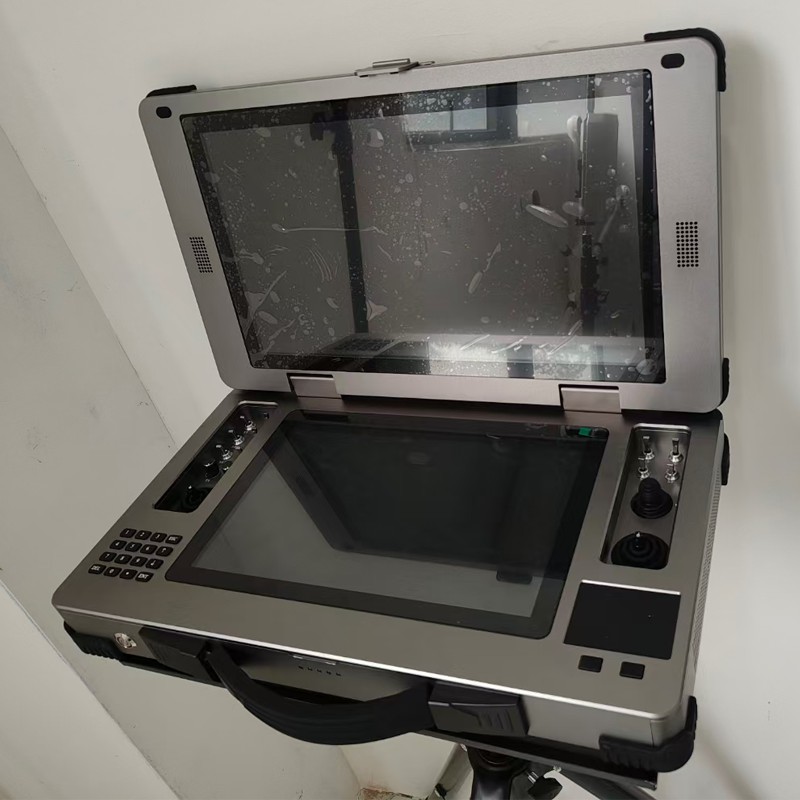

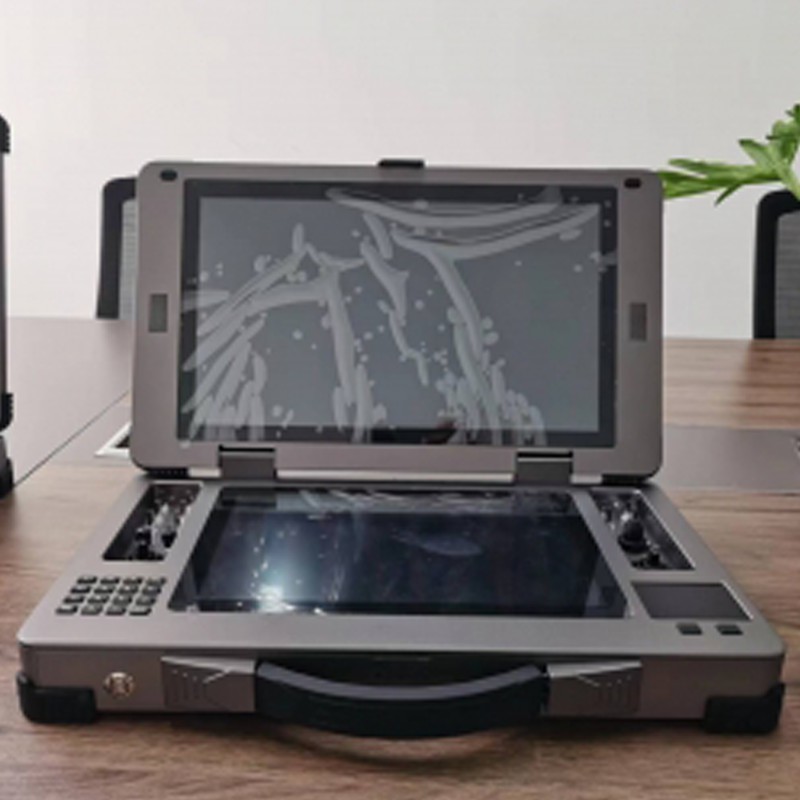

The dual screen ground station DMS-05 adopts a sturdy and durable industrial grade design, equipped with high-performance processors and large capacity storage to meet complex task requirements. Its touch screen supports multi touch, making it convenient for users to operate. The dual screen design provides high-definition display and high brightness screen, ensuring clear viewing of flight data and video images even in complex environments. The device supports various functions such as flight mode control, flight data recording and display, video display and follow-up, status monitoring, parameter binding, and trajectory planning. It is easy to operate and has comprehensive functions. In addition, the device also has functions such as voice prompts, fault alarms, and real-time monitoring to ensure flight safety. Suitable for various industrial scenarios such as inspection, surveying, rescue, etc., it is an ideal choice for drone operation. Its portability and reliability make it a trusted partner for professional users.
product details
This dual screen ground station is designed specifically for high complexity operational scenarios, integrating cutting-edge technology with user-friendly design. The body adopts a modular layout, with the main screen and auxiliary screen working together. The main screen presents core data with a large field of view, while the auxiliary screen focuses on auxiliary operations. The dual screen linkage improves multitasking efficiency. The screen is equipped with high brightness display technology, which ensures clear and sharp images even in strong light environments, with every detail fully displayed. The touch function supports multi-point gesture operation, combined with precise feedback from physical buttons and knobs, to achieve efficient human-computer interaction.
The device is equipped with advanced processor architecture, compatible with multiple system platforms, and meets software adaptation requirements in different scenarios. The rich physical interface design covers diverse external devices, seamlessly integrating from data link transmission to real-time control, ensuring the continuity of the workflow. Adequate expansion space and standardized ports are reserved inside the body, supporting later functional upgrades and customized needs, providing flexible technical extension capabilities for professional users.
In terms of battery life and stability, the device adopts a high-density battery solution, combined with intelligent power management, to ensure uninterrupted operation requirements around the clock. The body structure has undergone rigorous environmental testing, and the shell is made of high-strength materials, balancing lightweight and impact resistance to adapt to harsh conditions such as extreme cold, high temperature, and humidity. The internal component layout is scientific, with excellent heat dissipation efficiency, ensuring stability under long-term high load operation.
For professional control scenarios, the device integrates multi-channel control modules, which achieve precise command input and fast response through the combination of physical buttons, knobs, and levers. Whether it's flight navigation, equipment debugging, or real-time data monitoring, they can all be completed through an intuitive interactive interface. The reserved customized space and interfaces further meet the in-depth needs of special industry scenarios, such as surveying, emergency rescue, industrial inspection, and other fields.
Product Features
Dual screen collaborative control, main and auxiliary division of labor to improve multitasking efficiency.
High brightness touch display, clear image under strong light, sensitive touch response.
Multiple interface expansion, compatible with various devices to achieve full link control.
Adapt to harsh environments, with wide temperature and shock resistance to ensure stable operation around the clock.
Technical Parameter
Dual screen ground station DMS-05 |
|
System |
Windows 10/Linux |
Processor |
Intel i7-11 generation CPU |
Memory&Storage |
8GB/256GB (optional) |
WIFI |
2.4/5.6G WiFi ,Bluetooth 4.0 |
Screen |
15.6 inch (1920 * 1080) |
12.1 inch (1208 * 800) |
|
Touch screen |
10 point touch |
External interface |
2*USB3.0/1*HDMI/1*LAN |
Brightness |
1000nit |
Battery |
16.8V 12AH |
Weight |
8kg |
Remote control output |
18 channels - dual SBUS output/USB-HID |
Physical channel |
2 * Flight joystick/1 * Hall joystick/ |
8 * Three speed lever/2 * Knob/2 * Two speed lever |
|
Reserved space |
140*70*27mm |
Internal reserved interface |
6*RS232/2*USB/1*RJ45 |
Internal reserved power supply |
12V 3A |
Size |
462*296*80mm |
Working time |
4-5h |
Working temperature |
-20 ℃~60 ℃ |
The above parameters are for reference only. Detailed product parameters are subject to actual delivery. |
