Multi-Gas Drone Detector: Real-Time 4G Data for Industrial & Environmental Monitoring

Multi-Gas Drone Detector: Real-Time 4G Data for Industrial & Environmental Monitoring

This multi-gas detection drone sensor system provides real-time air quality monitoring UAV capabilities, integrating over 100+ replaceable sensors to detect CO2, PM2.5, VOCs, and toxic gases like H2S. Designed for industrial VOC leak detector applications and environmental compliance checks, its 4G/WiFi dual-mode transmission delivers instant pollution maps to ground stations. The autonomous atmospheric data logger supports Chinese/English interfaces, enabling wireless PM2.5 drone mapping across factories, landfills, and disaster zones. With flight trajectory heatmaps and historical data comparison, it’s the ultimate dual-language environmental survey tool for industrial safety teams and EPA inspectors.

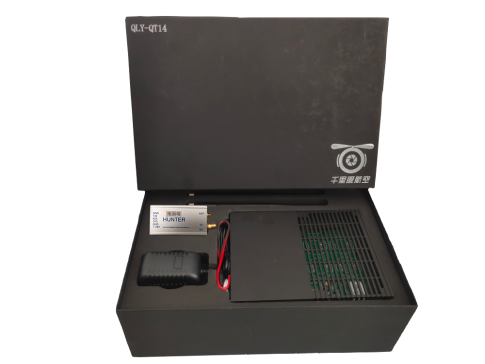

             The QLY-QT14 gas detector is mainly used to monitor temperature, humidity, and air pressure in the environment, CO2,PM2.5,PM10,PM1, Hydrogen chloride, ammonia, hydrogen sulfide, VOC and other related gas concentration data can be viewed in real-time, including monitoring data, historical data, map view of flight trajectories, and comparison of data at different times in the same location. Set up neutral equipment systems, edit software user and account information, and perform operations such as adding and deleting product sensors. The software supports both Chinese and English operations, and supports the integration and use of multiple drone products. Hundreds of gas sensors can be replaced at any time, and the system has automatic recognition function.

             The QLY-QT14 gas detector can simultaneously detect multiple sets of atmospheric data, including longitude, latitude, and altitude. The map displays the detection trajectory and allows for real-time viewing of historical data. Simultaneously generate curve analysis graphs, lists, and interval graphs to display historical data for easy comparison and viewing. The advanced software features provide users with a strong user experience, with real-time wireless transmission of data to the ground and real-time transmission to servers via 4G.



Product Features:



The software can support multiple drone manufacturers.

Hundreds of gas sensors can be replaced at any time, and the system has automatic recognition function.

The shell is designed to be waterproof, windproof, dustproof, and impact resistant

Real time display of monitoring data and generation of corresponding trend curves.

It can view real-time historical data and generate curve analysis charts, lists, and chart styles to display historical data for easy comparison and viewing.

Simultaneously display latitude and longitude, altitude, aircraft status, temperature, humidity, and air pressure, CO2,PM2.5,PM10,PM1, Real time concentration values of gases such as hydrogen chloride, ammonia, hydrogen sulfide, VOCs, etc.

The detection accuracy can reach ppb level.

Real time wireless transmission of data to the ground end, or real-time transmission to the server through GPRS.

Product Parameters:

size

228×140×50mm

weight

500g

apply

Multi rotor unmanned aerial vehicle, fixed wing

detection range

Temperature, humidity, CO2, PM2.5, PM1.0, PM10 and H2S, NO2, SO2, CH4, O3, etc

Supply Voltage

12V

Data transmission method

4G/data transmission

Ambient Temperature

-30℃~60℃

Working environment humidity

(15~95)% RH without condensation
