Plant Protection Drone Series

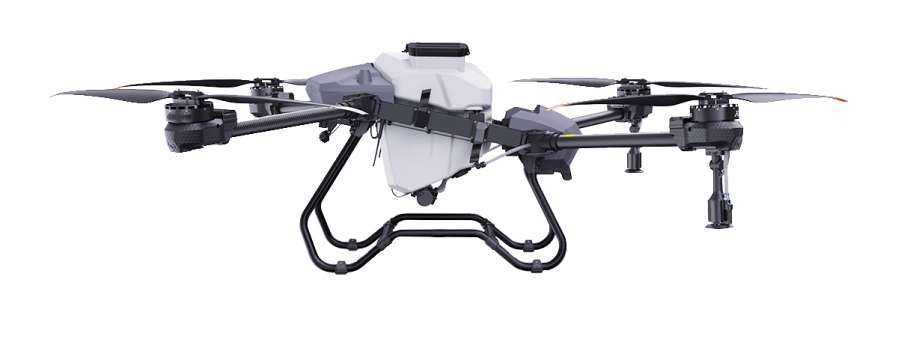

Plant protection drone HN-50

The HN-50 plant protection drone is equipped with 56 inch high-strength propeller blades, providing strong power. It has a large flow impeller pump and a water-cooled centrifugal nozzle, which can quickly switch between sowing and spraying modes. The nozzle and impeller pump that can simultaneously regulate the atomization particle size have high flow rate and efficiency. The flight control system has been completely upgraded, and the human-machine interaction is smooth and effortless. Equipped with precision ultrasonic flow meters, sensors and liquid separation detection, accurate and stable. Adopting an integrated material box, quick replacement and automatic recognition by the system. The spreader discharges smoothly, the metal disc is sturdy and wear-resistant, and the discharge is uniform. Excellent internal structure, resistant to falls and easy to maintain.

Product parameters

plant protection drone HN-50
Unfold size	3045mm3078mm830mm（spray）
Unfold size	3045mm3078mm890mm（sow）
Folded Size	1113mm781mm841mm（spray）
Folded Size	1113mm781mm890mm（sow）
Wheelbase	2299mm
Propeller size	56inch
Empty drone weight	36.7kg(without battery)，51.4kg(including battery)
Sow empty drone weight	37.2kg(without battery)，51.9kg(including battery)
Maximum takeoff weight	101.4kg
Empty load hover time	17.5min（18S 30000mah battery）
Full load hover time	7min（18S 30000mah battery）
Working temperature	0℃~40℃
Spray system
Tank capacity	50L
Pump parameters	Voltage 12-18S，power 30W，
Pump parameters	Maximum flow 16L/min
Nozzle parameters	Voltage 12-18S，power 500W，
Nozzle parameters	Atomized particle size 50~500μm
Effective spray amplitude	4~8m
Broadcasting system
Tank capacity	70L
Maximum load capacity	50kg
Applicable materials	0.5~6mm dry solid particles
Effective broadcasting range	8~12m
Remote control
Resolving power	1080*1920
Display	5.5 inch
Battery life	5h
Charging time	5h(20W)
Remote control distance	1km(3m height unobstructed)
Weight	0.85kg
Recommended battery (not standard)
Voltage	18S
Capacity	30000mah
Weight	13.5kg
The above parameters are for reference only. Detailed product parameters are subject to actual delivery.

Integrated spraying and broadcasting, meeting the needs of multiple scene operations

The overall solution for agricultural drones includes 50kg load-bearing model, quick switching of spraying and sowing, flight control system, smoother human-machine interaction, and easier plant protection operations.


spray system	broadcasting system	sturdy and durable	flight control system
Fine atomization spray, adjustable atomization particles, precise and efficient in size	360 ° uniform discharge, umbrella shaped metal stirring plate, smooth spreading	Double the strength of the body, easy folding and transition, sturdy and durable	New operating system, upgraded hardware protection, stable performance

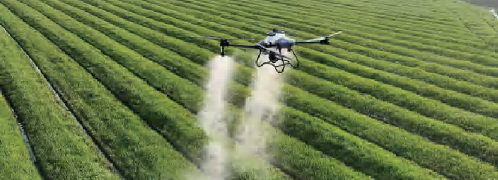

Adjustable atomization spray, precise and efficient

Equipped with a large flow impeller pump and a unique water-cooled centrifugal nozzle, ultrasonic flow meter and precision sensor, efficient and precise spraying is achieved.

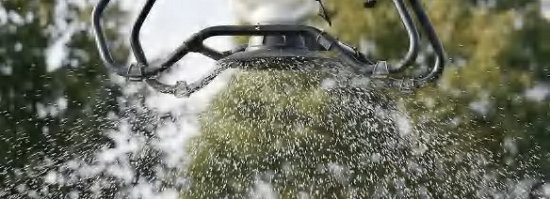

Newly upgraded broadcasting system, 360 ° smooth and fast broadcasting

Integrated material box, fast switching, automatic system recognition, no debugging required, equipped with newly upgraded umbrella shaped winch, achieving 360 ° uniform and smooth spreading.

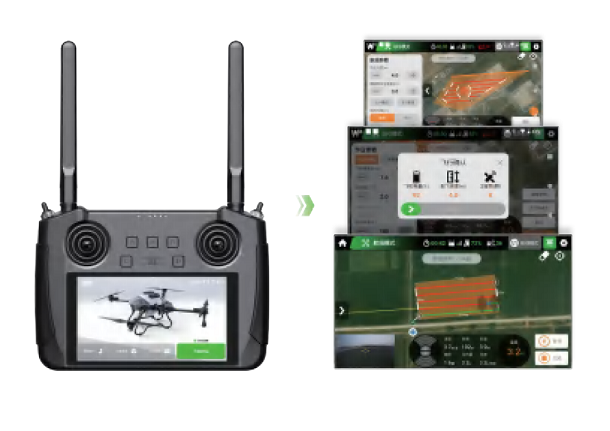

The flight control system is stable and easy to operate

A brand new operating interface, simple and beautiful, convenient interactive logic, one click access to commonly used settings, and real-time viewing of homework data. Multi language custom switching, simple operation, easy to complete work instructions.

Comprehensive detail optimization


truss body	induction arm	current resistant circuit board	flight control system

Professional Technical Training

Assembly

Maintenance

Inspection & Testing

Troubleshooting

Multiple sets & flexible shipping

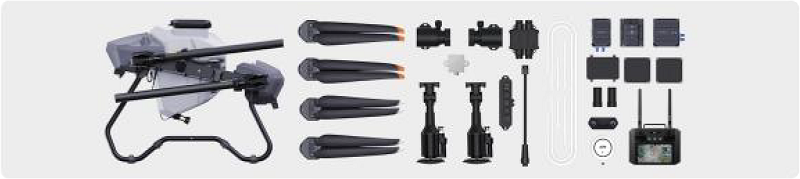

Upgrade Package

Frame	×1	Liquid level meter	×1	Adapter board	×1	Front obstacle avoidance radar	×1
Power train	×4	Centrifugal nozzle	×2	Pipeline fitting	×1	Ground penetrating radar	×1
Impeller pump	×2	Remote controller	×1	Flight control module	×1	GPS	×1
Flow meter	×1	Camera	×1	Receiver module	×1

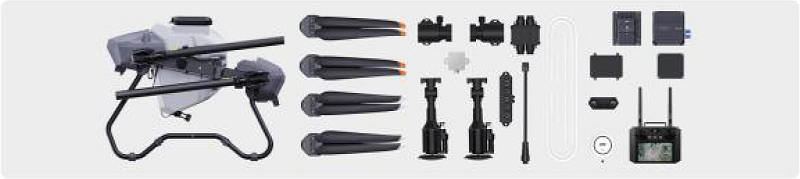

Standard Package

Frame	×1	Liquid level meter	×1	Adapter board	×1	RTK module	×1
Power train	×4	Centrifugal nozzle	×2	Pipeline fitting	×1	Rear obstacle avoidance radar	×1
Impeller pump	×2	Camera	×1	Flight control module	×1	Front obstacle avoidance radar	×1
Flow meter	×1	Remote controller	×1	Receiver module	×1	Ground penetrating radar	×1
GPS	×1

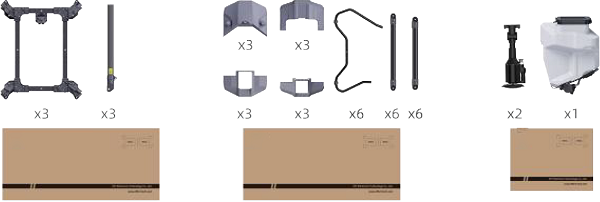

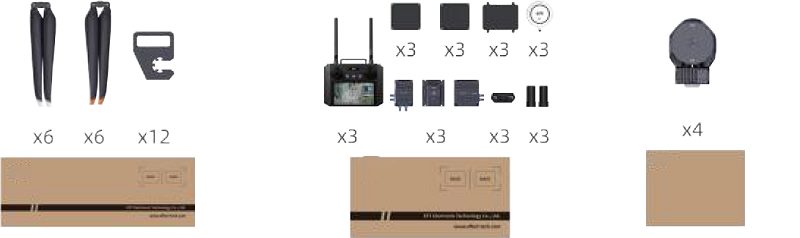

Three sets of packages and spare parts shipment

985*670*455mm

1CTN

985*670*455mm

1CTN

511*448*390mm

3CTN

766*438*274mm

1CTN

485x345x345mm

1CTN

460x370x350mm

3CTN
