A high-altitude, high-speed, and heavy-load unmanned helicopter that can take off and land in high-altitude areas. It has the characteristics of high autonomy, strong expansion capability, good environmental adaptability, reliability and safety, and excellent flight performance. It can carry a variety of general and special mission payloads and has been widely used in emergency response, firefighting, logistics and transportation, forestry, grassland, electricity and other industries.
Excellent plateau performance and strong expandability
It adopts advanced aerodynamic shape and aviation supercharged piston engine, can take off and land at high altitudes, has large load capacity, fast flight speed and long endurance, can meet the requirements of heavy load, high efficiency and continuous operation, and has strong scalability.
Dual redundant flight control with high reliability
It adopts dual-redundancy, high-precision HeliAP flight control technology, which is reliable and safe, with high control accuracy and good stability.
High autonomy and high environmental adaptability
It has the functions of manual control, program-controlled flight and one-button fully autonomous flight, and has the capabilities of autonomous take-off and landing, fixed-point hovering, autonomous obstacle avoidance, emergency return, precise point delivery, etc.; it has excellent environmental characteristics such as resistance to high and low temperatures, humidity and heat, rain, sand and dust, salt fog, mildew, low pressure, etc., and has strong environmental adaptability.
Simple structure and high safety
The structure is simple, disassembly and assembly are convenient, easy to install, and the manufacturing and maintenance costs are low; the installed size is small and easy to transport; it is designed with multiple safety strategies such as flight control redundancy design, navigation redundancy design, flight envelope protection control, emergency power supply, emergency return, no-fly zone avoidance, real-time safety monitoring by ground stations, and autonomous fault monitoring and isolation alarm, with high safety.
Load capacity

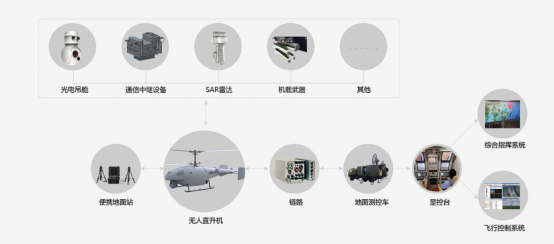

Optoelectronic pods, transport mounts, communication relay equipment, SAR radars, high-definition surveying and mapping equipment, airborne weapons, etc.
Performance indicators
640kg (sea level)
550kg (altitude 5000m)
Maximum take-off weight
200kg (sea level)
120kg (altitude 5000m)
Maximum payload
6.5 (load 100 kg, sea level)
2h (load 200 kg, sea level)
2h (load 120 kg, altitude 5000m)
Endurance time: 100-120km/h
Cruising speed 180km/h
Maximum level flight speed 6500m
Practical ceiling 5000m
Hovering altitude without ground effect 200km
Mission radius: Take-off and landing wind resistance 6 levels (12m/s)
Air wind resistance 8 levels (18m/s) Wind
resistance -40℃~55℃
Working temperature: moderate rain, light snow
Complex environment: temperature 60℃, humidity 95% Resistance to humidity and heat
