Ultra-Lightweight Multi-Band Drone Defense Tactical Backpack System

The powerful drone detection and jamming interception system uses multi-array antenna array, covering the common working frequency range, excellent amplitude and phase consistency, very low antenna mutual coupling influence, it can provide good direction finding accuracy, excellent anti-interference ability in the actual environment, even in the environment of a large number of reflected signals, the system can still provide accurate direction.

QLY-PD1 multi-band directional drone signal jamming shield ,The multi-frequency and multi-standard directional locking is used to suppress and block radio waves, and the ultra-high speed sweep frequency technology is used to generate a variety of broadband signals to strike the UAV.It has small size, light weight,good mobility,Passive no radiation, interference does not affect the user's own electromagnetic equipment and other advantages . The device supports GPS positioning, which can be used for real-time monitoring of this series of interceptor devices through the background, and can be used in networking with low altitude radar system, spectrum detection system, photoelectric exploration detection system, video tracking and identification system. When low, small and slow aircraft enter the prevention and control area, it can lose the picture transmission signal and control signal, and the GPS link can effectively suppress the remote, so lt can force landing and driving away of unlicensed flying drones without approval.

               The device has the characteristics of small size, light weight, easy to carry and handheld work, and can start working at any time. It can be used for targeted strike and countermeasure management against UAVs in all aspects, so that they can lose flight control instructions and satellite positioning information and cannot fly normally, and achieve the control effect of forced landing and dispersal of black flying UAVs. It can form a network with fixed countermeasure stations, mobile vehicle-mounted countermeasure stations, handheld countermeasure devices, detection systems, low-altitude radar systems, photoelectric tracking systems and other systems.

QLY-F90S counter-drone equipment (not anti-drone equipment type) has small size and ight weight, it is easyto carry by hand or on back, and can be started at any time. External battery can reduce the weight of the device itself, portable, more convenient battery replacement. New touch screen design, newly added password boot function, more convenient operation. The device can carry out directional strike and counter management against the UAV in all-round way, so that it can lose flight control instructions and satellite positioning information and cannot fly normally, so lt can force landing and driving away of unlicensed flying drones without approval.

The portable UAV jamming interceptor QLY-F06S with small size, light weight, easy to carry and handheld operation, easy to use, and can be started at any time. Comprehensive detection and countermeasures management are carried out for the UAV, so that it loses the flight control instructions and satellite positioning information and cannot fly normally, so as to achieve the control effect of force landing and driving away of the unlicensed flying UAV. It can form networking with fixed countermeasures station, mobile vehicle-mounted countermeasures station, handheld countermeasures equipment, detection system, low altitude radar system, GPS decoy system, photoelectric tracking and other systems.

The GD-06 UAV photoelectric tracker adopts standardized and modular design technology, with good scalability. It comprehensively uses two passive optical sensors, visible light cameras and infrared thermal imagers, and has an embedded automatic tracking module to achieve multi-channel image encoding, target detection, discovery, recognition, locking, and tracking functions under the same core.

The ZC-06 drone detection and warning device is equipped with an external ultra wide band antenna. With the recognition of the frequency spectrum characteristics of drones, it can provide sound, light, and electrical warnings for common drones on the market. Even in complex electromagnetic environments, its false alarm rate is relatively low. This instrument can be used to collaborate with portable drone countermeasures equipment for mobile duty, in order to detect black flying drones in a shorter time.

LD-05 three coordinate monitoring radar of three coordinate system, it use digital beam forming technology, it mainly used in low altitude and ground monitoring, the equivalent omnidirectional radiation power is low, high search data rate. The radar adopts adaptive clutter suppression technology and tracking technology before dense target detection, and the clutter false alarm rate is very low. It can automatically track and sail more than 150 batches of targets, and output high-precision position information.

INTRODUCTION Portable unmanned aerial vehicle countermeasures interfere with the communication link of unmanned aerial vehicles by emitting specific frequency bands of electromagnetic waves, forcing them to lose control, lose images or navigation guidance, triggering protective mechanisms such as hovering, landing, or returning, thereby achieving effective control of "black flying" unmanned aerial vehicles.

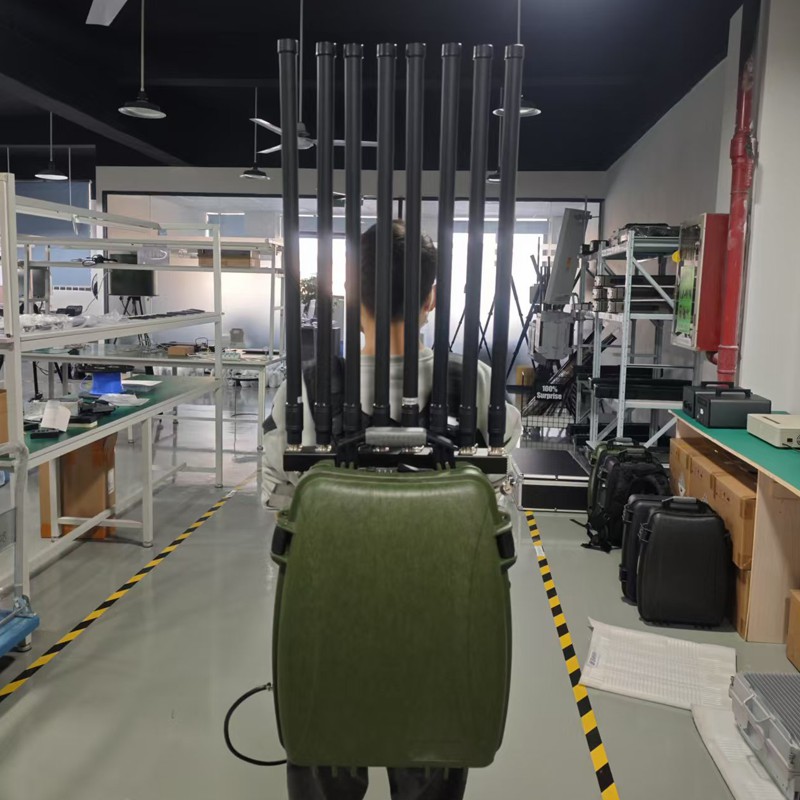

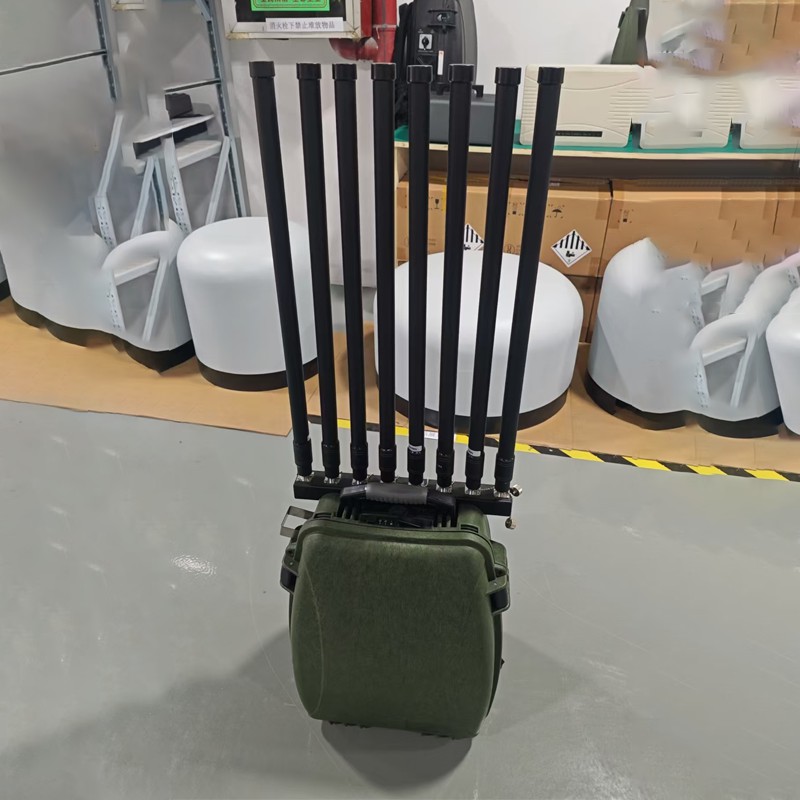

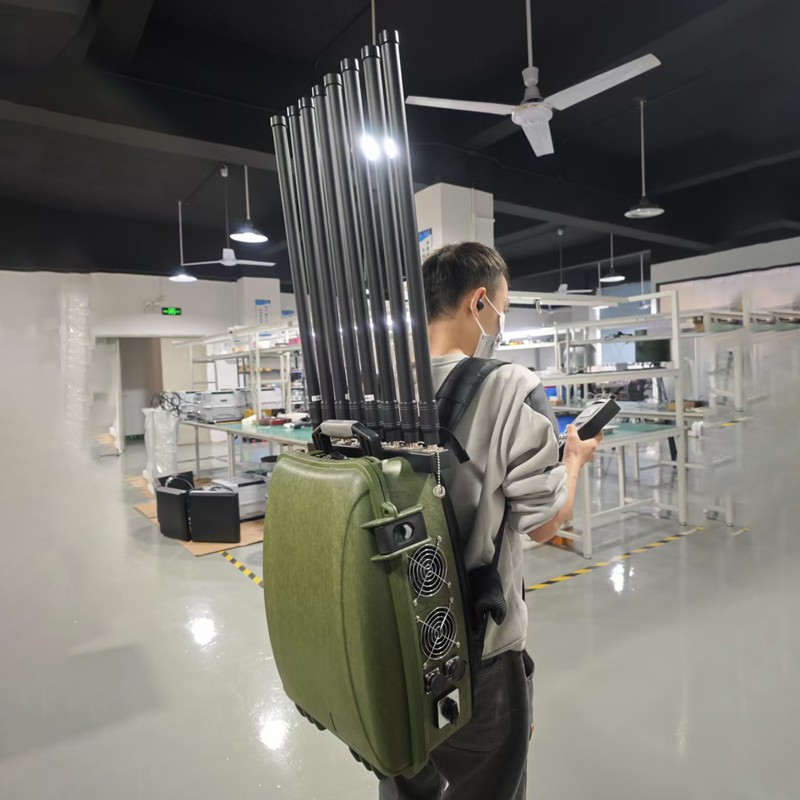

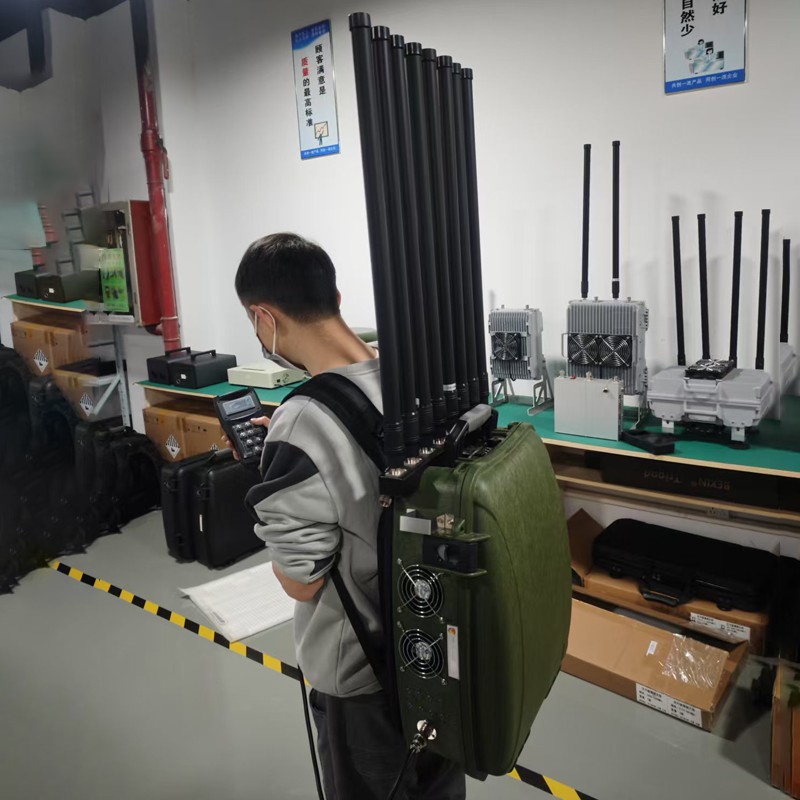

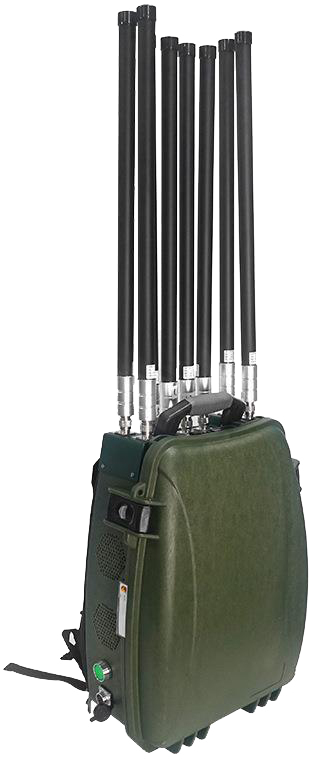

       The backpack type drone countermeasure F-B02 adopts a lightweight single soldier portable design, which can be quickly deployed and operated independently. The device integrates an intelligent cooling system and a long-lasting power supply to ensure stable operation under high-intensity tasks. It integrates multi band composite interference capability, accurately cuts off drone remote control signals, image transmission links, and satellite positioning systems, forcing the target to lose control and return or make an emergency landing. Equipped with switchable directional or omnidirectional antenna systems, it can effectively intercept mainstream drone intrusions and provide low altitude security for important locations.       This portable UAV signal jamming countermeasure backpack delivers multi-frequency drone detection interception with military-grade reliability. Engineered for rapid deployment, it safeguards critical sites from 1.5km threats while maintaining unmatched portability.

The portable drone countermeasure device F-05s adopts ultra-high frequency broadband seamless interference technology, with a built-in modular power system that supports quick replacement, and an intelligent temperature control dual fan cooling structure to ensure long-term stable operation of the device. It can accurately suppress the drone control link and image transmission channel. The body adopts a lightweight and compact design, which can selectively block target signals in complex electromagnetic environments and avoid affecting peripheral devices. The core components are equipped with high stability components, combined with a slow start circuit design, greatly improving the durability and safety of the equipment. The whole machine combines portability and high power output characteristics, adapting to various outdoor application scenarios.
